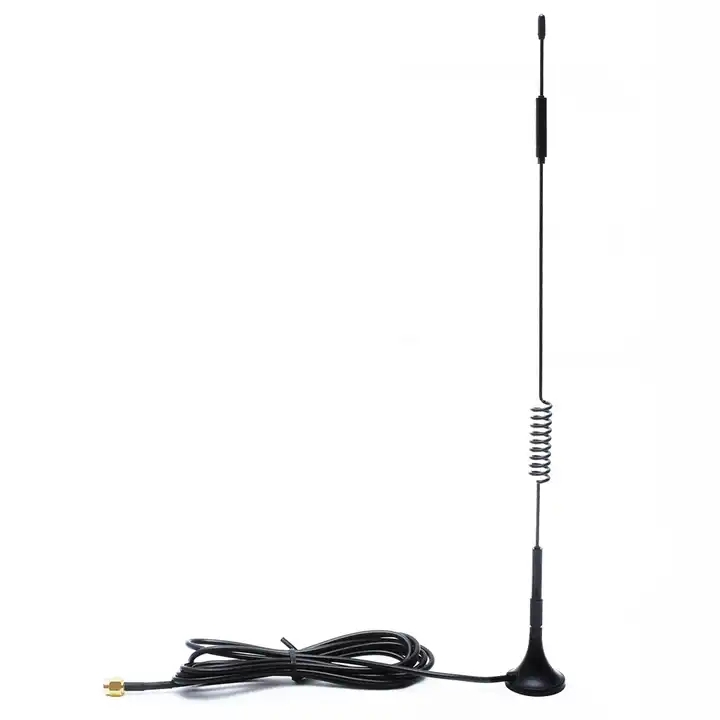

4G LTE 700/800/900/1800/2100/2700Mhz 3G 2G Gsm Gprs sucker stainless outdoor Antenna With Sma Connector

Availability:
Quantity:
Inquire Add to Basket

  • LSW




Electrical Characteristics
1.1 Antenna
1
Antenna model
LTE sucker stainless antenna
2
Frequency Range
700MHz～2700MHz
3
V.S.W.R
2.5:1
4
Impedance
50 ohm
5
Gain
5.0 dBi
6
Polarization
Vertical Linear
7
Directivity
Omni-Directional
2.Material
No.
Part Name
SPEC
1
Antenna
Stainless Steel Wire
2
Pedestal
ABS
3
RF Cable
RG174, 3 meters
4
RF Connector
SMA male
5
Fixed mode
Magnetic Steel
6
Size (Typical)
Ø31*315 mm
